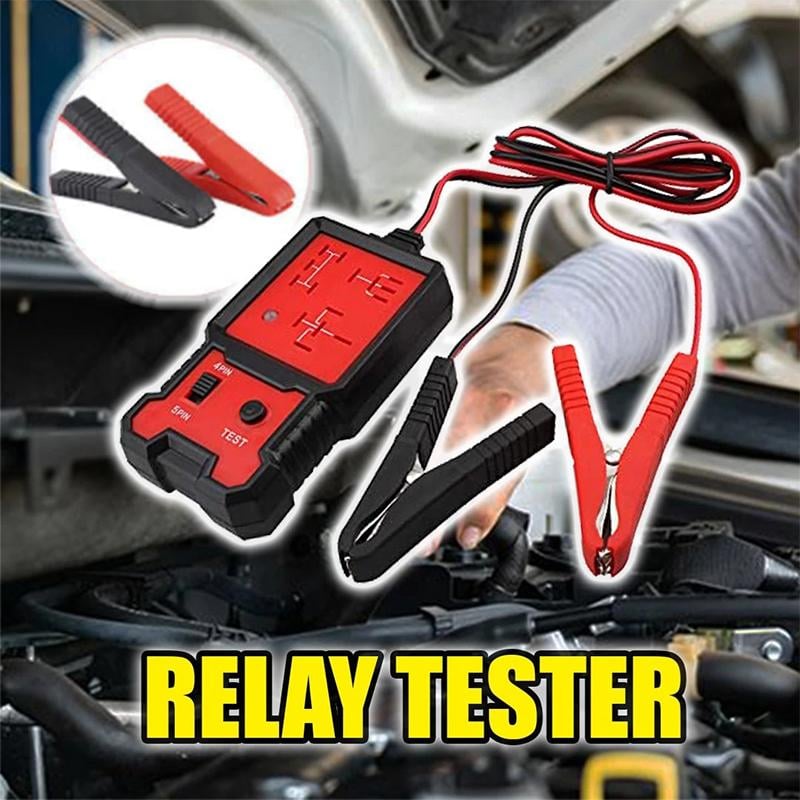

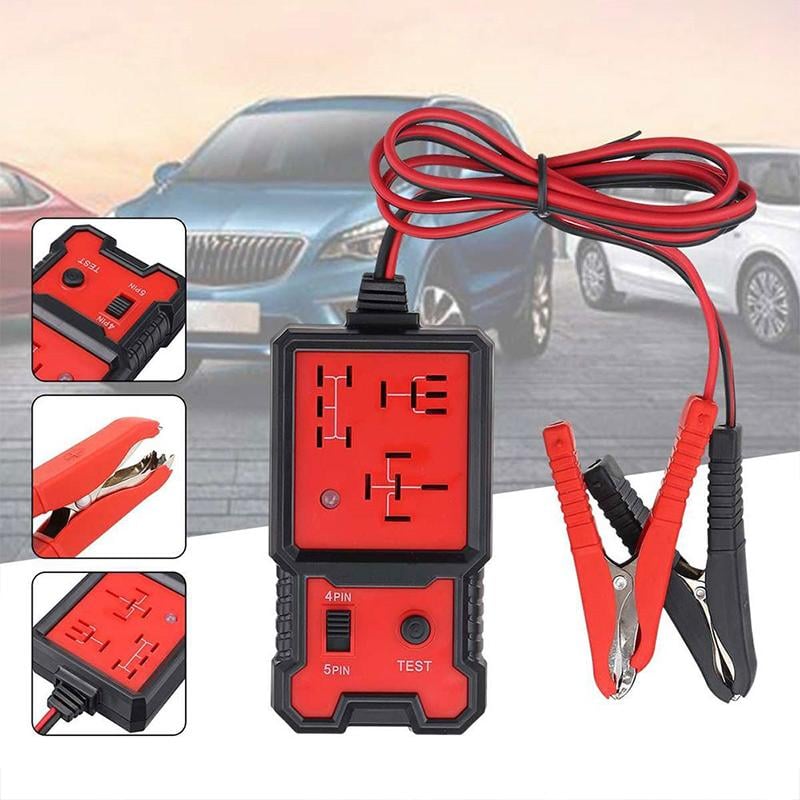

Relay Tester

KEEP YOUR AUTOMOTIVE RELAY IN CHECK ON THE GO!

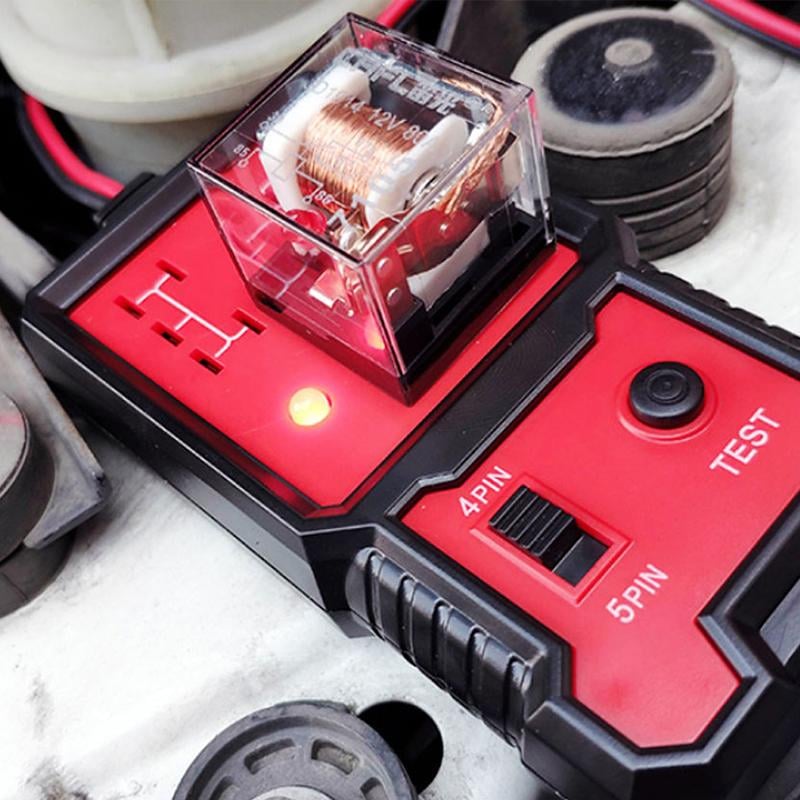

The tester will automatically detect the pin position, the release time of the action, and the consistency of the relay in each test phase. If the tester lights up the green LED light, the relay is normal; if the red LED light is on, the relay is abnormal.

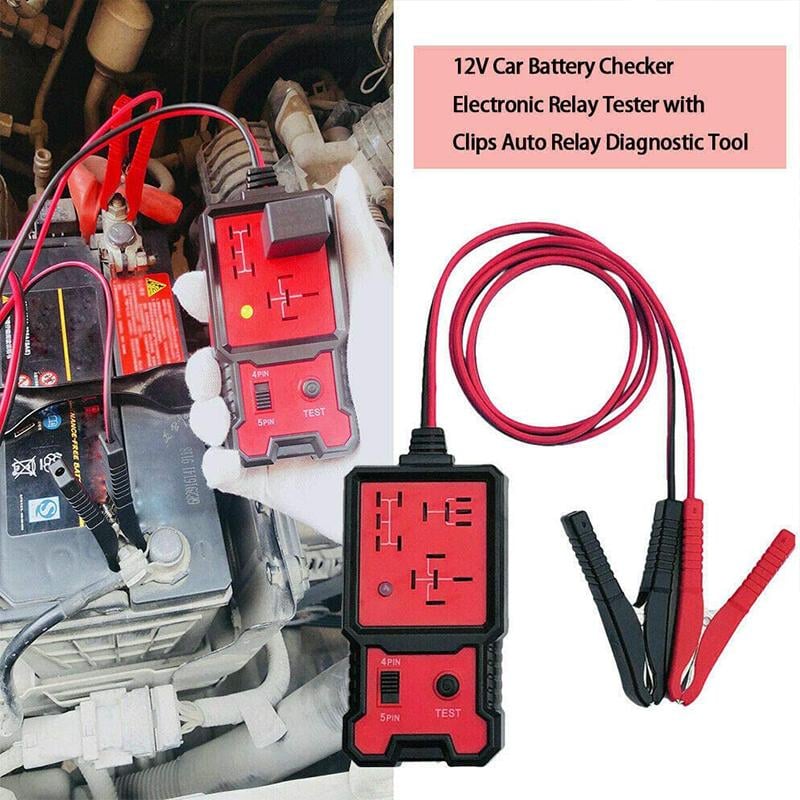

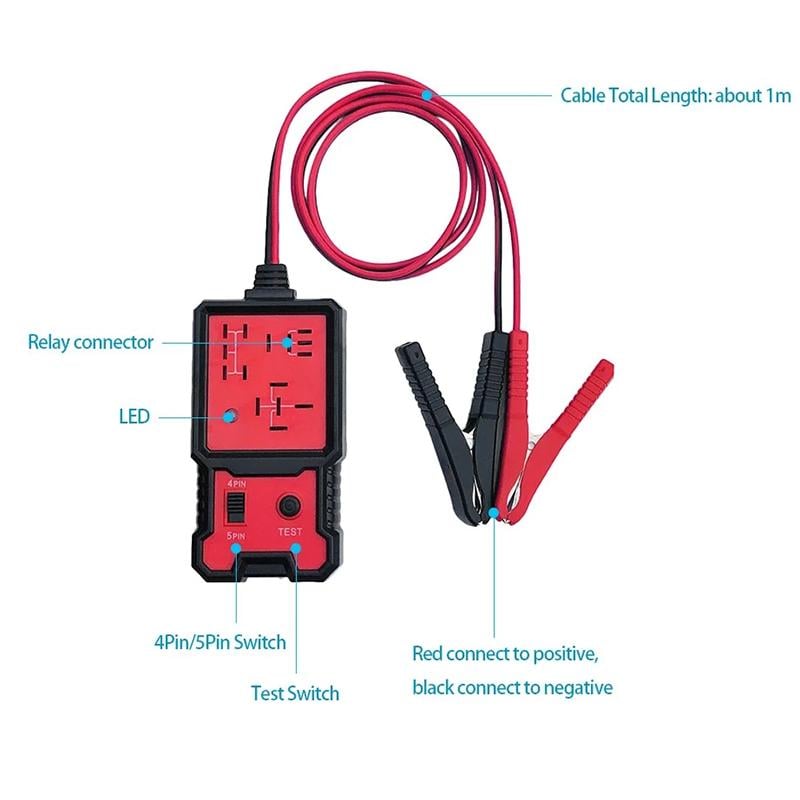

First, clip the alligator clip of the tester to the car battery, the black clip on the negative pole, and the red clip on the positive pole. When the red LED light is on, it means the tester can start the test. Check the relay before testing. Select the appropriate socket according to the pins, insert the relay into sockets, press the "Test" button, and the tester will automatically detect the pin position of the unknown relay.

DESCRIPTION:

• Couldn't seem to know the details and condition of your electrical relay? Want to prevent your car relay to go faulty without warnings? Relay Tester is the best choice that you can go for!

• Relay Tester or is able to accept 3 different specifications of relay pins. Relay switching with 4 or 5 pins are usable on the tester.

• It is a quick test tool to test automotive relays and know their status. If the relay test is abnormal, the light red LED is bright, if it is normal, the green LED is lit.

FEATURES:

• 3 different specifications of relay pins (4-pin/5-pin switching)

• Connect the wire to car battery and press TEST button to start the test.

• Through the car battery (11V-15V) to the relay coil, the detector can properly check the relay contact function.

• LED display, clear instructions, LED green light indicates normal, red light indicates relay failure.

• Observes contact data, closure time, relay inertia at each test stage, etc.

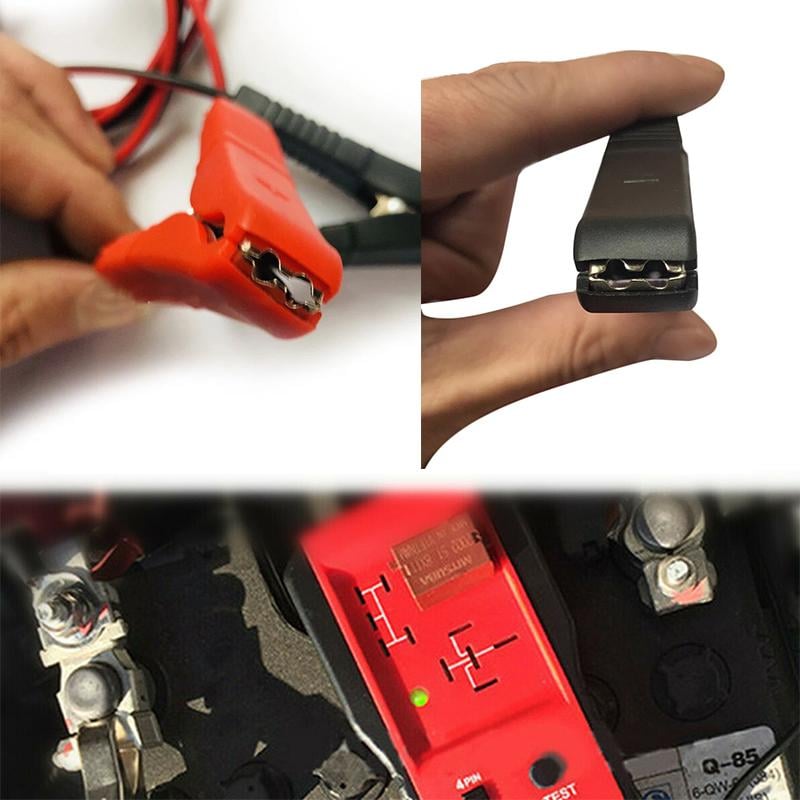

• Comes with rubber sleeved battery clip, safe to use

• Compact size, lightweight and portable

PACKAGE:

• 1 x Relay Tester

NOTE:

• Please allow slight measurement deviations due to manual measurement.

• Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed in the pictures.(Pre-sale for 25 days)
